Introduction
In modern manufacturing, the choice of machining method significantly impacts product accuracy, efficiency, and cost. Turning, milling, grinding, and wire EDM (Electrical Discharge Machining) are the most widely used techniques, each with distinct advantages and applications. This article provides a detailed comparison to help select the optimal method for specific needs.

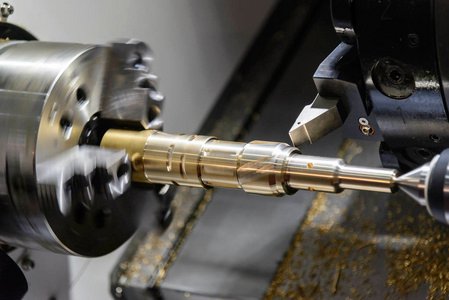

1. Turning
Basic Principle:
Turning involves rotating the workpiece while a stationary cutting tool removes material, primarily used for cylindrical or symmetrical parts.
Applications:
- Shafts, discs, and round components.
- Operations: Facing, boring, threading, and grooving.
Advantages:
- High precision and superior surface finish.
- Versatile for multiple operations (e.g., external/internal turning, threading).
- Ideal for mass production; easily automated.
Limitations:
- Limited to axisymmetric or simple geometries.
- Weak capability for complex shapes.
2. Milling
Basic Principle:
Milling uses a rotating multi-point cutting tool to remove material from a stationary workpiece, enabling complex 2D/3D shapes.
Applications:
- Flat surfaces, slots, gears, and contoured profiles.
- Suitable for metals, plastics, and composites.
Advantages:
- High flexibility for intricate shapes (e.g., pockets, molds).
- Excellent precision and surface quality.
- Compatible with diverse tooling (end mills, face mills, etc.).
Limitations:
- Lower efficiency for large-scale production.
- Complex setups may require CNC expertise.
3. Grinding
Basic Principle:
Grinding employs abrasive wheels to cut hardened materials, achieving ultra-fine finishes and tight tolerances.
Applications:
- Hard materials (e.g., tool steel, ceramics).
- Precision components (bearings, shafts, molds).
Advantages:
- Exceptional surface finish (Ra < 0.5 µm).
- Handles high-hardness materials unreachable by cutting tools.
Limitations:
- Low material removal rate (slow process).
- High skill and equipment costs.

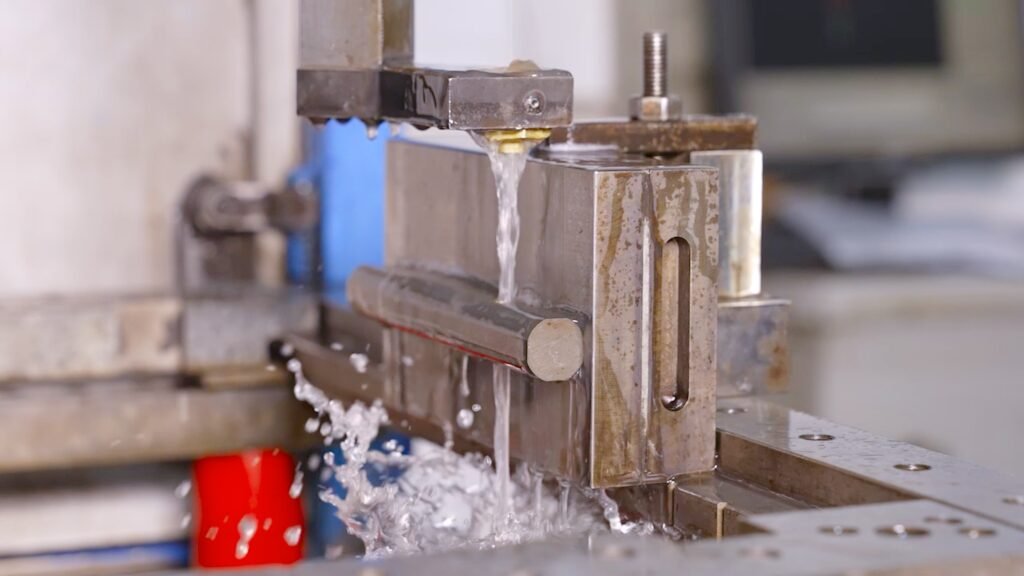

4. Wire EDM
Basic Principle:
Wire EDM cuts conductive materials using electrical sparks between a moving wire electrode and the workpiece.
Applications:
- Intricate dies, punches, and micro-components.
- Hard metals (tungsten, carbide) or fragile geometries.
Advantages:
- No contact force—ideal for delicate parts.
- Sub-micron accuracy (±0.005 mm).
- No hardness limitations.
Limitations:
- Slow speed; unsuitable for bulk production.
- Limited to conductive materials.
Comprehensive Comparison
| Method | Best For | Advantages | Limitations |
|---|---|---|---|
| Turning | Rotational/symmetrical parts | High precision, automation-friendly | Restricted to simple geometries |
| Milling | Complex 3D shapes | Versatile, multi-axis capabilities | Lower efficiency for large batches |
| Grinding | Hard materials, fine finishes | Nanoscale accuracy, smooth surfaces | Slow, costly |
| Wire EDM | Precision molds, hard metals | No hardness constraints, intricate cuts | Very slow, conductive-only |
Conclusion
Selecting the right machining method depends on:
- Material (hardness, conductivity).
- Part Geometry (symmetry, complexity).
- Precision Requirements (tolerances, surface finish).
- Production Volume (mass vs. small batch).
Guidelines:
- Turning: High-volume cylindrical parts.
- Milling: Complex shapes or prototypes.
- Grinding: Ultra-precision/hard materials.
- Wire EDM: Intricate, hard-to-machine designs.
Manufacturers can optimize quality, cost, and lead time by understanding these methods’ strengths and constraints.
