Core Values and Typical Applications of Electrical Discharge Machining (EDM)

Table of Contents

Introduction

Electrical Discharge Machining (EDM) removes material through controlled pulsed discharges, bypassing the physical limitations of traditional cutting methods. Its non-contact nature and unique capabilities make it not just an alternative but often the only viable solution for challenging machining scenarios. This analysis explores EDM’s advantages across three critical dimensions: material properties, geometric complexity, and precision requirements.

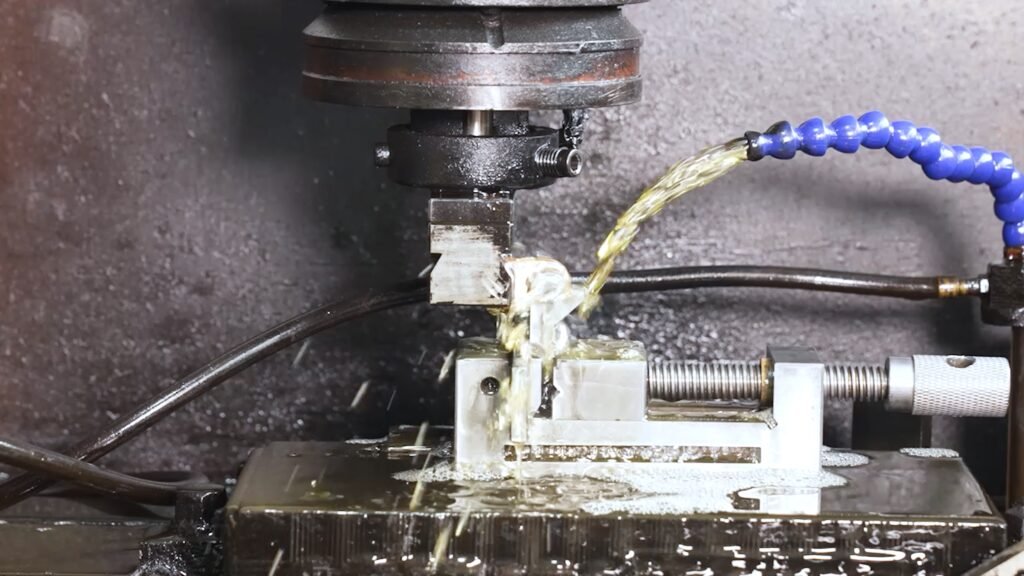

edm

1. Material-Driven Selection Logic

(1) Superhard Material Machining

  • Typical Materials:
  • Hardened steel (≥60 HRC), cemented carbides (e.g., YG8), cermets, powder metallurgy parts.
  • Technical Edge:
  • Traditional tools suffer >80% breakage rates when machining hardened dies (e.g., SKD11), while EDM achieves controlled electrode wear (0.1–3%).

(2) Heat-Sensitive Material Processing

  • Key Scenario: Thin-wall titanium alloy cavities (wall thickness < 0.5 mm).
  • Thermal Advantage:
  • Despite localized temperatures of 8,000–12,000°C, microsecond-scale discharges limit heat-affected zones to 0.02–0.1 mm, preventing warping caused by conventional milling.

2. Geometric Complexity Breakthroughs

(1) Micro-Structure Fabrication

  • Limits Achieved:
  • Microholes with 0.05 mm diameter and 20:1 depth-to-diameter ratio (e.g., inkjet printer nozzles).
  • Data Comparison:
  • Drilling 0.1 mm holes: EDM with brass electrodes achieves >90% success vs. frequent tool breakage in conventional drilling.

(2) Undercuts and Deep Cavities

  • Case Study:
  • Monolithic hardened mold sliders with undercuts: EDM eliminates assembly gaps, tripling mold lifespan vs. split machining.

(3) 3D Surface Precision Etching

  • Efficiency Benchmark:
  • Irregular cooling channels (radius R0.3 mm) on turbocharger blades:
    • 5-axis milling: 72 hours.
    • EDM: 38 hours (roughing + finishing) with zero tool interference risk.

3. Precision and Surface Quality Excellence

(1) Mirror EDM

  • Process: Graphite electrodes + kerosene dielectric + high-frequency pulses (µs-level).
  • Outcome: Ra < 0.1 µm mirror finish, eliminating manual polishing and preserving sharp edges.

(2) Nanoscale Accuracy

  • Application: Optical lens molds with diffraction patterns.
  • Tolerance: ±1 µm form accuracy, surpassing slow wire EDM (±3 µm).

(3) Functional Surface Texturing

  • Innovation: Micro-pit arrays (20–50 µm depth) on artificial joints enhance bone cell adhesion, uniquely balancing precision and biocompatibility.

4. Industry-Specific Irreplaceability

IndustryTypical PartsEDM’s Unique Value
Mold MakingHardened steel dies/insertsEliminates parting-line mismatches
AerospaceTurbine blade cooling holesAchieves 15:1 depth-diameter in superalloys
Medical DevicesOrthopedic implant porous structuresStress-free titanium alloy machining
SemiconductorsLead frame etchingDeformation-free processing of 0.1 mm Cu alloy

5. Techno-Economic Decision Model

EDM becomes cost-effective when either of these conditions is met:

  1. Material hardness ≥55 HRC OR depth-diameter ratio ≥8:1.
  2. Accuracy ≥IT7 OR Ra ≤0.4 µm.

Cost Insight:

  • For small/medium batches (50–500 parts), EDM reduces total costs by 18–35% vs. 5-axis milling (CIRP 2023 Report).

Conclusion: From Constraints to Design Freedom

EDM’s value extends beyond solving “unimaginable” challenges—it unlocks engineers’ design potential. When functional demands surpass conventional machining limits, EDM provides the shortest path to design realization.

Next Steps:
Submit your part drawings to our technical team for a customized solution covering:

  • Electrode design optimization.
  • Machining strategy.
  • Cost-benefit analysis.

Key Takeaways

  • Material Freedom: Processes ultra-hard/heat-sensitive materials.
  • Geometry Mastery: Handles micro-features, undercuts, and 3D contours.
  • Precision Leadership: Delivers sub-micron accuracy and functional surfaces.
  • Industry-Specific: Critical for molds, aerospace, medical, and electronics.
