In the world of precision machining, producing a flawless-looking part is not enough; it must also be functional.
Especially when dealing with complex-shaped (asymmetrical or irregular) components, unseen deformations can silently compromise the entire functionality, despite the part appearing “within tolerance” at first glance.
Today, let’s explore why complex shapes are high-risk zones for micro-deformation, what typical mistakes are made, and how top-tier machining teams tackle this invisible challenge.
1. Why Complex Shapes Are Inherently Deformation-Prone
Unlike regular cubes, cylinders, or flat plates, irregular-shaped parts have non-uniform material distributions and asymmetric structures.
This causes several hidden risks during machining:
a. Uneven Internal Stress Release
- Raw materials—even high-quality billets—contain residual stresses from forging, casting, or heat treating.
- When material is removed unevenly, these stresses redistribute in unpredictable ways.
- Asymmetrical parts make balanced stress relief almost impossible without special techniques.

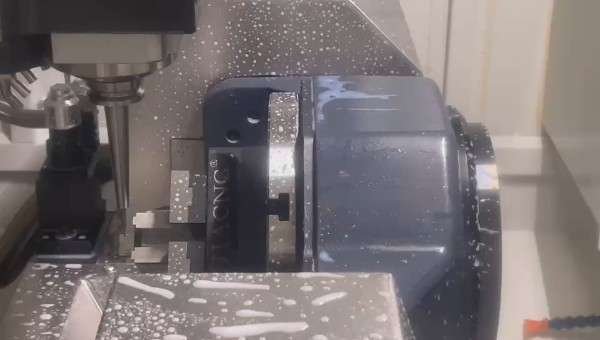

b. Clamping-Induced Distortion
- Complex geometries often lack uniform clamping surfaces.
- Machinists must use custom soft jaws, vacuum fixtures, or multi-point low-pressure systems.
- Improper clamping applies localized pressure, distorting the part during and after machining.
c. Structural Weakness Zones

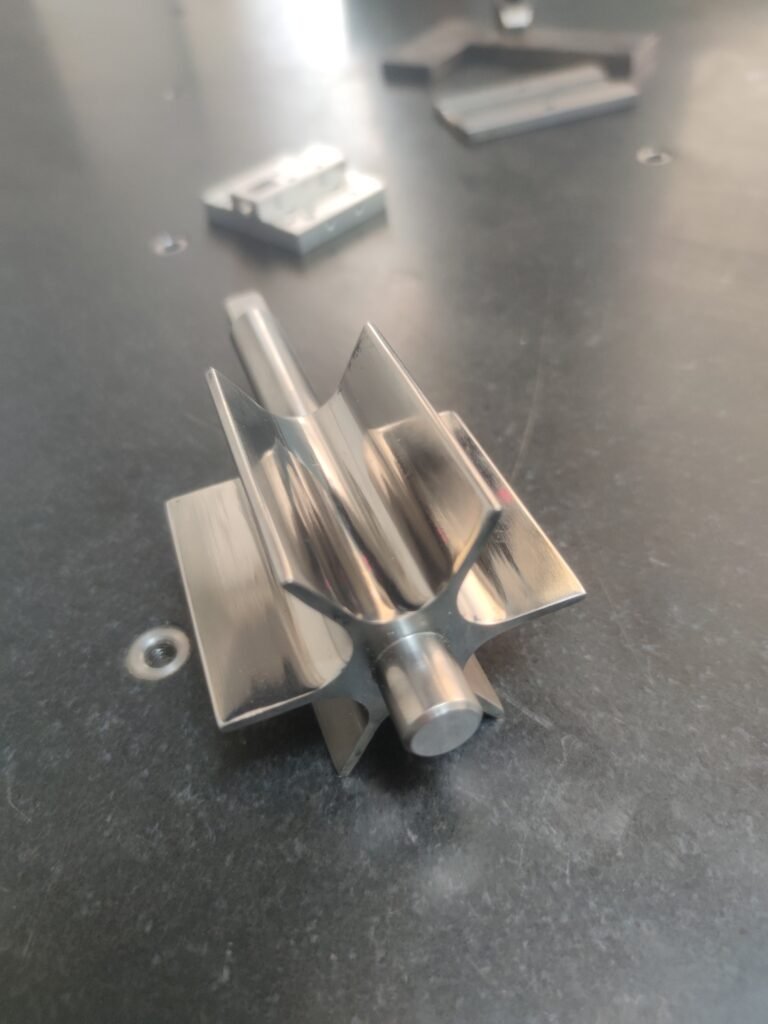

- Thin walls, deep pockets, long arms, and isolated ribs behave like springs under machining forces.
- Even low cutting forces can trigger elastic or plastic deformation in these weak areas.
2. Real-World Case: Micro-Deformation in Titanium Medical Components
At a leading medical device manufacturer, a surgical guide made from titanium alloy (Ti6Al4V) was designed with:
- 3D curved surfaces
- Multiple internal channels
- Precision mating interfaces requiring ±0.01mm accuracy
Despite passing the standard CMM inspection after machining, misfits of up to 15 microns were detected once the device was assembled onto the human model—enough to cause serious surgical inaccuracies.
Post-mortem Analysis Revealed:
- Clamping force temporarily “held” the part flat during machining
- When unclamped, the imbalance of stresses caused a springback deformation
- Neither visual inspection nor free-standing CMM checks caught the problem
Impact:
- 100+ parts scrapped
- Urgent remanufacturing under expedited schedules
- Direct financial loss exceeding $250,000
- Significant reputation risk
3. Key Techniques to Control Deformation in Complex Parts
Mastering complex-part machining demands a combination of process design, fixture innovation, and stress management:
| Technique | Purpose | Tips |
| Optimized Clamping Systems | Evenly distribute forces to avoid local distortion | Use soft jaws, vacuum fixtures, flexible support beds |
| Balanced Machining Strategy | Symmetrical material removal to minimize stress shifts | Mirror cutting paths; avoid one-sided roughing |
| Intermediate Stress-Relief Steps | Allow material to stabilize mid-process | Semi-finish → Natural relaxation → Final cut |
| Support Structures Left On | Maintain mechanical stability during machining | Remove support tabs only in the final operation |
| Low-Stress Cutting Parameters | Reduce mechanical and thermal loads | Use sharp tools, high-speed, low-feed strategies |
| Functional Condition Inspections | Simulate real-world clamping/load during measurement | Temporary assembly jigs; load simulation fixtures |
Golden Rule:
Never trust a complex part’s dimensions when it’s just sitting free. Always validate it under the conditions it will face in the real world.
4. Professional Practice: Predictive Simulation and Prototyping
Top precision workshops today use Finite Element Analysis (FEA) and predictive modeling during process planning:
- Stress-field mapping during each machining phas
- Deformation behavior predictions post-unclamping
- Iterative fixture design simulations
- Prototype runs on sacrificial blanks to validate strategies
www.stcncmachining.com
Rather than reacting to deformation after it happens, this allows engineers to engineer stability into the process itself.
Example:
Before machining a complex aerospace bracket, engineers may simulate two dozen fixture options before finalizing one that guarantees under 5-micron deflection at release.
5. Conclusion: Real Precision Is Invisible Precision
In the precision world, visual perfection is meaningless if structural stability is compromised.
Complex-shaped parts are silent challenges—where forces you can’t see can ruin months of effort if not properly understood and managed.
When selecting a precision manufacturing partner, don’t just ask:
“Can you hold tight tolerances?”
Instead, ask:
“How do you proactively manage hidden deformation risks in complex parts?”
The answer to that question separates true precision experts from average machining shops.
Because in the world of complex precision parts,
What you don’t see will always catch up with you.
