Rapid prototyping is an excellent choice when designing a product and needing to confirm its performance before tooling. Rapid prototyping is quickly creating physical or digital prototypes to validate and test the feasibility and functionality of product designs. Today let’s talk about the rapid prototyping technique.

Rapid prototyping is a process used in product development to quickly create a physical or digital prototype of a product or system. It involves using various techniques and tools to quickly iterate and refine the design before moving on to production.

Rapid Prototyping Techniques and Tools

Rapid prototyping utilizes various techniques and tools, depending on the desired outcome. These include 3D printing, CNC machining, laser cutting, computer-aided design (CAD) software, virtual reality (VR) simulations, and more. The choice of technique depends on factors such as the complexity of the design, materials required, and available resources.

The Advantages of Rapid Prototyping Technology

1. Quick Speed

The main objective of rapid prototyping is to create prototypes quickly, allowing for a faster product development process and shorter time-to-market. It enables designers and engineers to test and validate their ideas more rapidly.

2. Multiple Iterations

Rapid prototyping encourages an iterative approach, creating and refining multiple prototype versions based on feedback and testing. This iterative process helps identify and address design flaws and improvements early on.

3. Cost-effective:

It can save costs by allowing designers to identify and correct design issues early in development. It helps avoid expensive mistakes during mass production by validating the design and usability of the product before investing in tooling and the actual manufacturing process.

4. Communication and collaboration

Prototypes act as tangible representations facilitating communication and collaboration among team members, stakeholders, and potential users. They provide a common ground for discussing and refining ideas, allowing for better feedback and decision-making.

5. Validation and testing:

Rapid prototyping allows for quick validation and functional testing of design concepts at the early stages. Prototypes can be used to evaluate the product’s form, fit, and function and test usability, ergonomics, and performance. This feedback helps improve the design process and make informed decisions for the final product.

High Fidelity Prototypes Vs. Low fidelity Prototypes

High fidelity prototypes are detailed and closely resemble the final product, while low fidelity prototypes are rough and simplified representations. A high fidelity prototype provides a realistic experience. It is useful for usability testing, while a low fidelity prototype is quick and inexpensive for exploring design ideas and identifying flaws early on.

Rapid Prototyping Processes

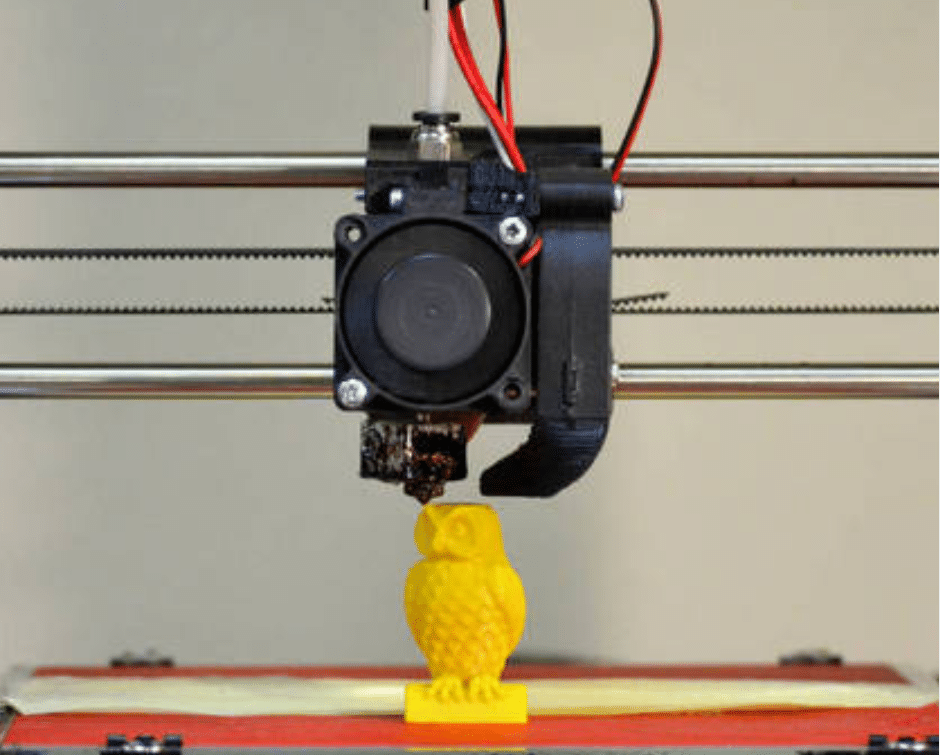

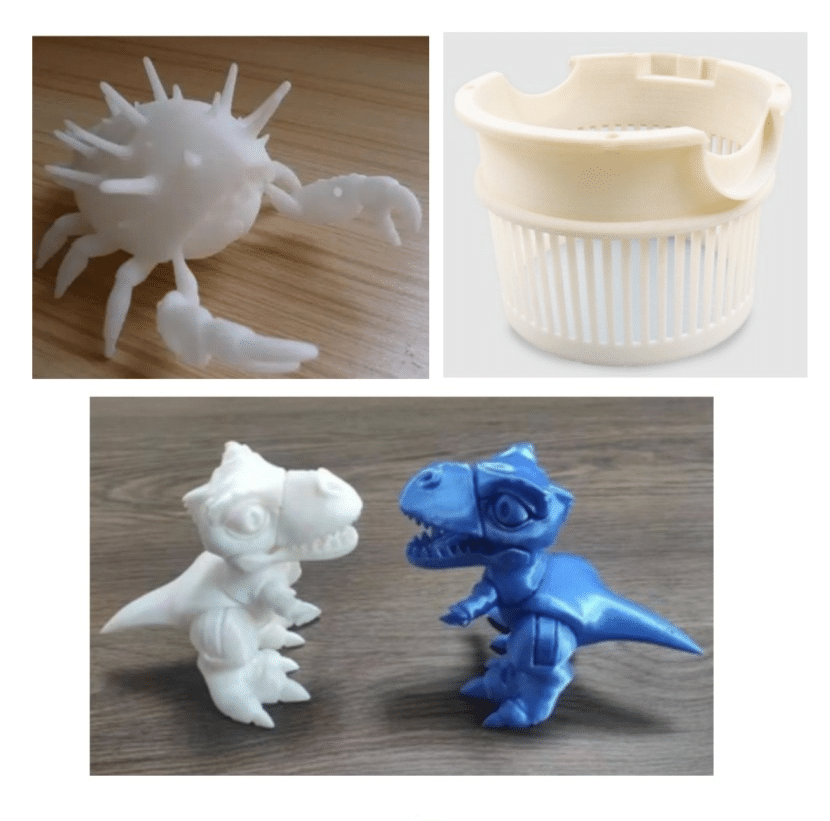

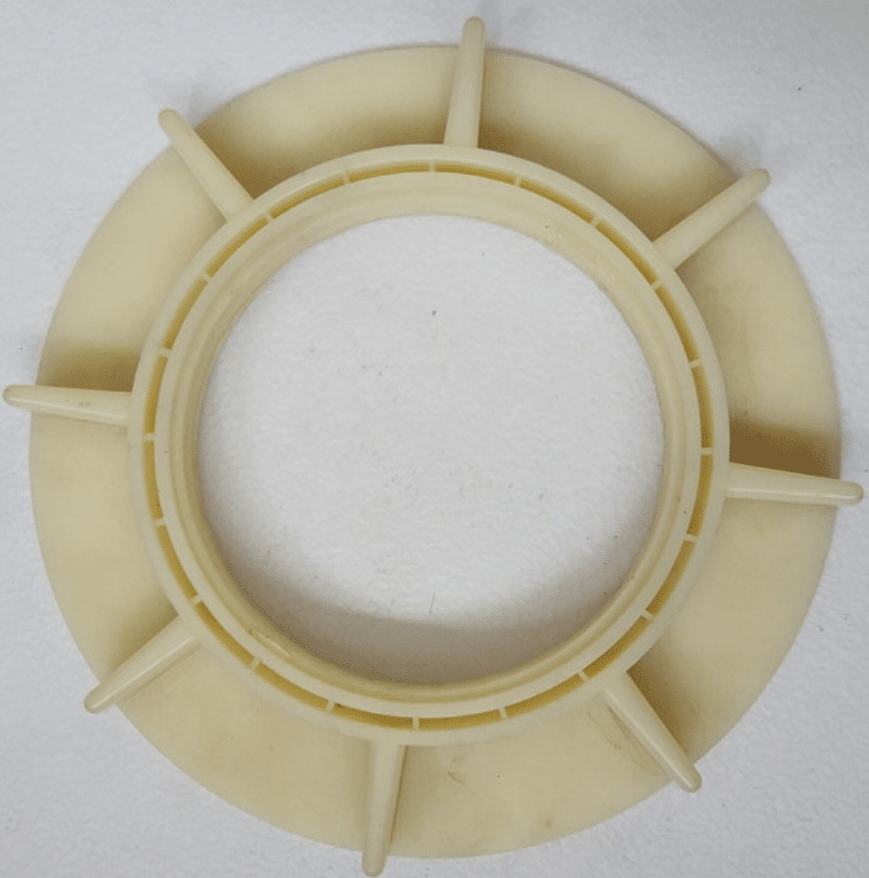

1. 3D Printing

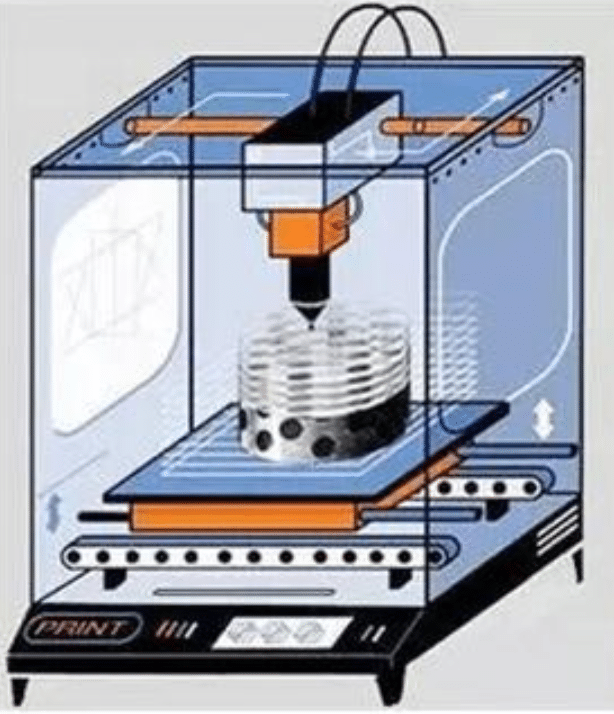

3D printing, also known as additive manufacturing technology, creates three-dimensional objects layer by layer. It offers advantages such as quick prototyping, customization, and the ability to produce complex geometries. It has applications in various industries and uses materials like plastics, metals, and ceramics. However, it has limitations in terms of production speed and scalability. Technological advancements continue to enhance its capabilities, making it an increasingly valuable tool in manufacturing.

3D printing services offer prototype printing capabilities, including SLS (Selective Laser Sintering) and SLA (Stereolithography). Here’s a brief overview of each service:

SLS Prototype Printing Service:

• Utilizes high-power laser to fuse powdered materials layer by layer.

• Offers a wide range of materials, including thermoplastics like nylon and polycarbonate.

• Suitable for producing prototypes with complex geometries and internal cavities.

• Prototypes can have good mechanical properties for functional testing.

• Provides relatively quick turnaround times for rapid iteration and design validation.

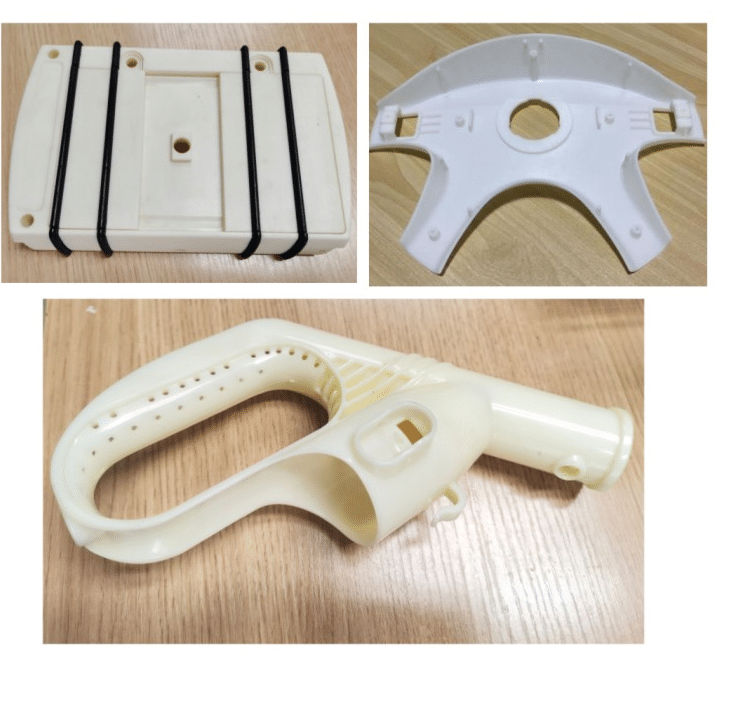

SLA Prototype Printing Service:

• It uses a UV laser to cure liquid photopolymer resins layer by layer.

• Offers high accuracy, resolution, and surface finish for detailed prototypes.

• Provides various resin options, including transparent, rigid, and flexible materials.

• Suitable for producing prototypes for concept validation, fit testing, and design verification.

• Enables rapid prototyping with fast production times.

SLS and SLA prototype printing services have their strengths and are chosen based on specific project requirements, such as material properties, design complexity, accuracy needs, and project timelines.

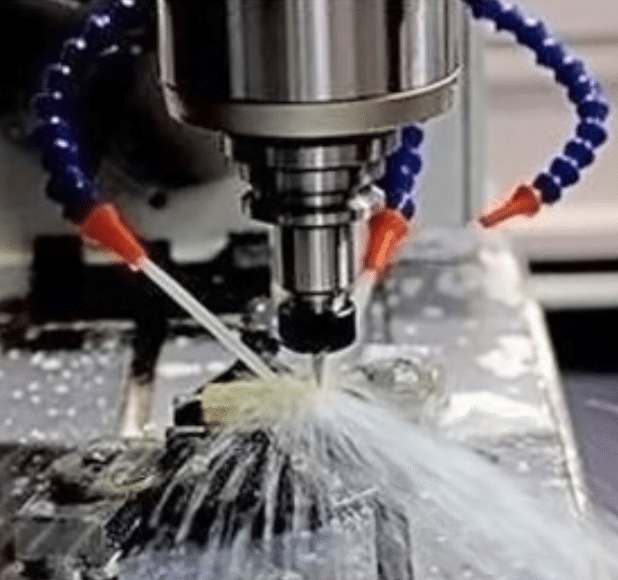

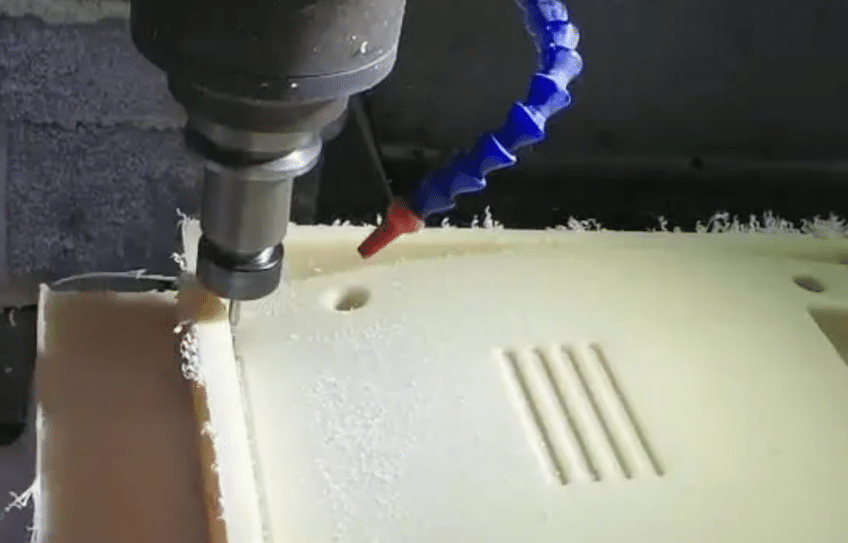

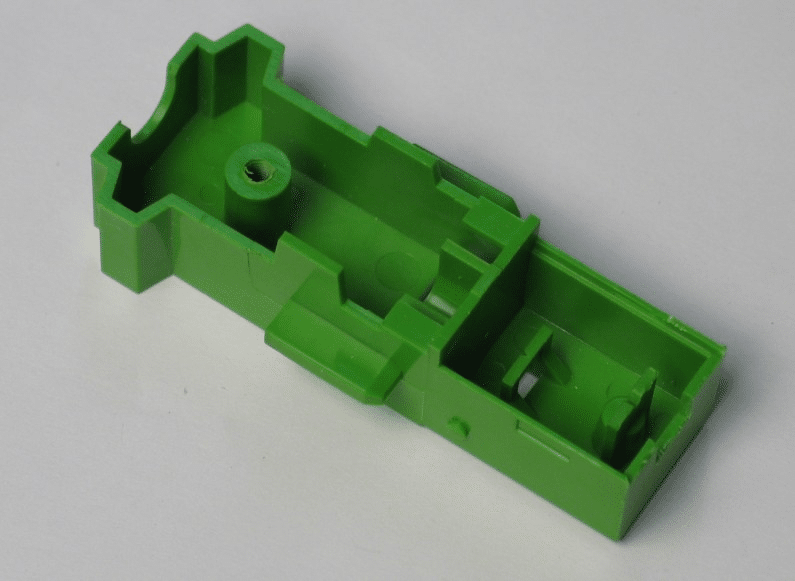

2. CNC machining prototyping process

CNC machining is a subtractive manufacturing process that uses computer-controlled machines to shape and remove material from a solid block. The process involves designing a 3D model, selecting the material, generating the toolpath, setting up the machine, performing machining operations, conducting quality control, applying finishing processes, and conducting a final inspection. CNC machining offers precise and accurate prototyping capabilities and is commonly used in various industries for creating complex parts with high-quality finishes.

3. Laser cutting prototyping process

Laser cutting is a precise and efficient process used in prototyping. It involves using a high-powered laser beam to cut or engrave materials based on a digital design. Laser cutting offers versatility, speed, and the ability to create intricate designs. It is widely used in various industries for rapid prototyping and achieving precise cuts with minimal material waste.

4. What is the difference between 3D printing and CNC prototypes

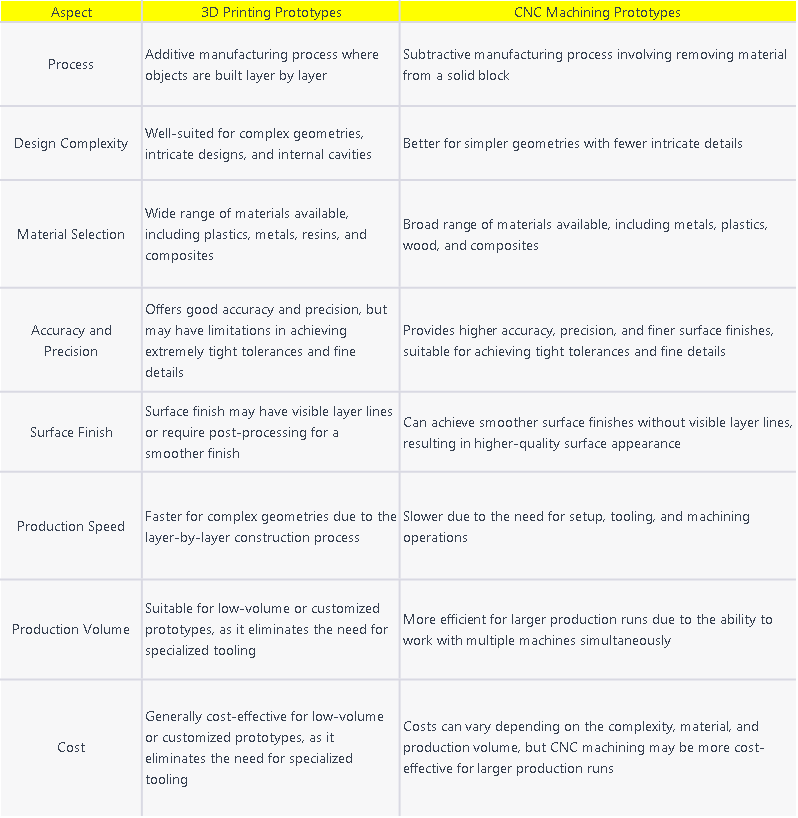

Here is a chart comparing 3D printing and CNC machining prototypes across various aspects:

What are the Limitations of Rapid Prototyping?

While rapid prototyping offers numerous advantages but has certain limitations that manufacturers should consider. Here are some common rules of rapid prototyping:

1. Material Limitations: Rapid prototyping processes often restrict the types of materials that can be used. While many materials are available for prototyping, some specialized or high-performance materials may not be suitable for certain rapid prototyping technologies. This limitation may affect the prototype’s mechanical properties, durability, or functionality compared to the final production material.

2. Accuracy and Resolution: While rapid prototyping technologies have significantly improved accuracy and resolution, they may still have limitations in achieving extremely high levels of precision. Prototypes’ dimensional accuracy and surface finish may not match those of the final production parts, particularly in specific complex geometries or intricate features.

3. Production Volume: Rapid prototyping is well-suited for creating prototypes or small production runs, but it may not be as efficient for large-scale production volumes. The speed and cost-effectiveness of rapid prototyping processes can diminish when producing many parts. In such cases, alternative manufacturing methods like injection molding or CNC machining may be more suitable.

4. Post-processing Requirements: Depending on the rapid prototyping technology used, the prototypes may require additional post-processing steps to achieve the desired surface finish or functionality. This can involve processes like sanding, polishing, painting, or assembly. Post-processing steps can add time, effort, and cost to prototyping.

5. Design Limitations: Certain design features, such as thin walls, sharp corners, or overhangs, may pose challenges for rapid prototyping technologies. Design modifications or supports may be necessary to ensure the successful fabrication of the prototype. Complex designs with intricate details may also increase the processing time and cost of rapid prototyping.

6. Equipment Limitations: Rapid prototyping equipment’s size limitations can restrict the prototypes’ maximum dimensions. Large-scale or oversized parts may be challenging to produce using standard rapid prototyping machines. Specialized equipment or alternative manufacturing methods may be required for such cases.

7. Cost: Rapid prototyping offers cost savings in design iteration and tooling, but it may still have higher per-unit costs than traditional manufacturing methods for large production volumes. The cost of materials, equipment, and post-processing steps can contribute to the overall expense of rapid prototyping.

8. Limited Functional Testing: While rapid prototyping allows for physical testing and validation of designs, the prototypes may not always fully replicate the functionality or performance of the final production parts. Certain material properties or manufacturing processes may affect the prototypes’ mechanical, thermal, or chemical behavior, limiting their suitability for extensive functional testing.

Despite these limitations, rapid prototyping remains a valuable tool in product development, enabling faster iterations, design validation, and customization. Manufacturers should carefully evaluate the specific requirements of their projects and consider the limitations of rapid prototyping technologies to make informed decisions about their prototyping approach.

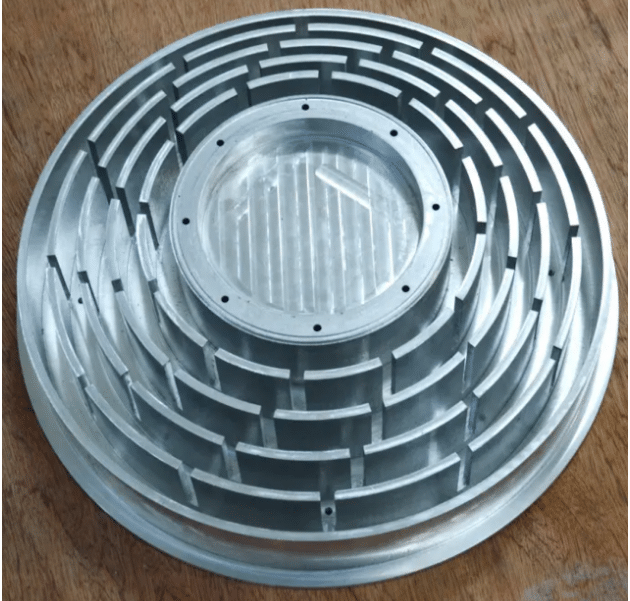

CNC Machines for Prototypes and Precision Machined Parts

Prototyping CNC Machine Types:

• Vertical milling machines (3-axis or 4-axis mills)

• CNC lathes (2-axis or 3-axis turning machines)

• Swiss-type CNC machines

• Wire EDM machines (for intricate shapes)

• CNC grinding machines (less common)

Precision Machining CNC Machine Types:

• Vertical machining centers (VMCs) and multi-axis milling machines (5-axis mills)

• CNC turning centers, live tooling lathes, or multi-axis lathes

• Swiss machines (for small, complex parts)

• Wire EDM machines (for tight tolerances)

• CNC grinding machines (for tight tolerances and fine surface finishes)

What are the Rapid Prototype Surface Treatment Processes?

Here are some of the most common surface treatment processes used for rapid prototyping:

Sanding and polishing

Sanding is the process of smoothing the surface of a prototype by rubbing it with abrasive materials. Polishing is a finishing process that uses a fine abrasive material to remove any remaining imperfections and produce a smooth, glossy surface.

Painting and coating

Painting is a process of adding color and texture to the surface of a prototype using various paints and coatings. The coating adds a layer of protective material, such as a clear coat, to the prototype’s surface to protect it from wear and tear.

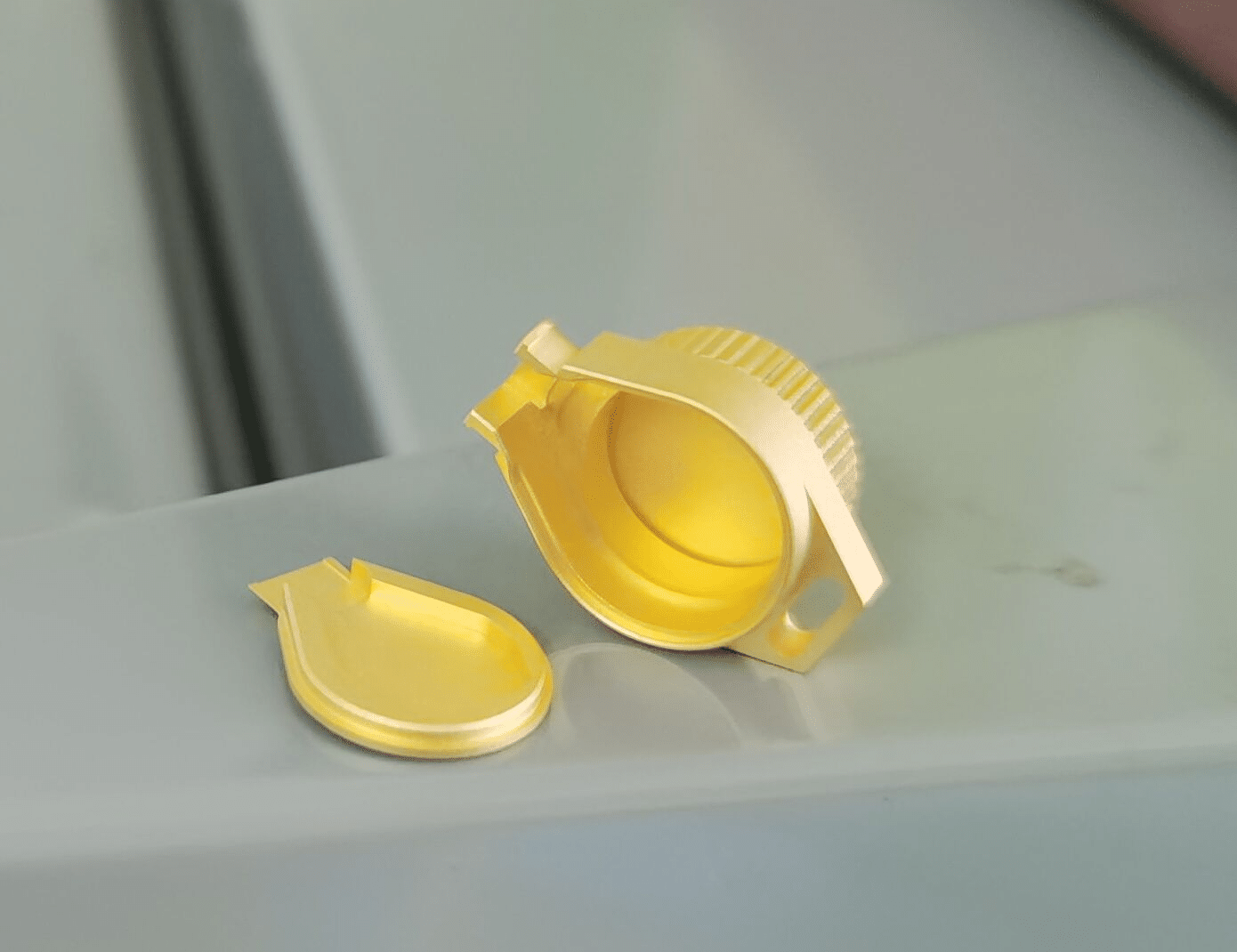

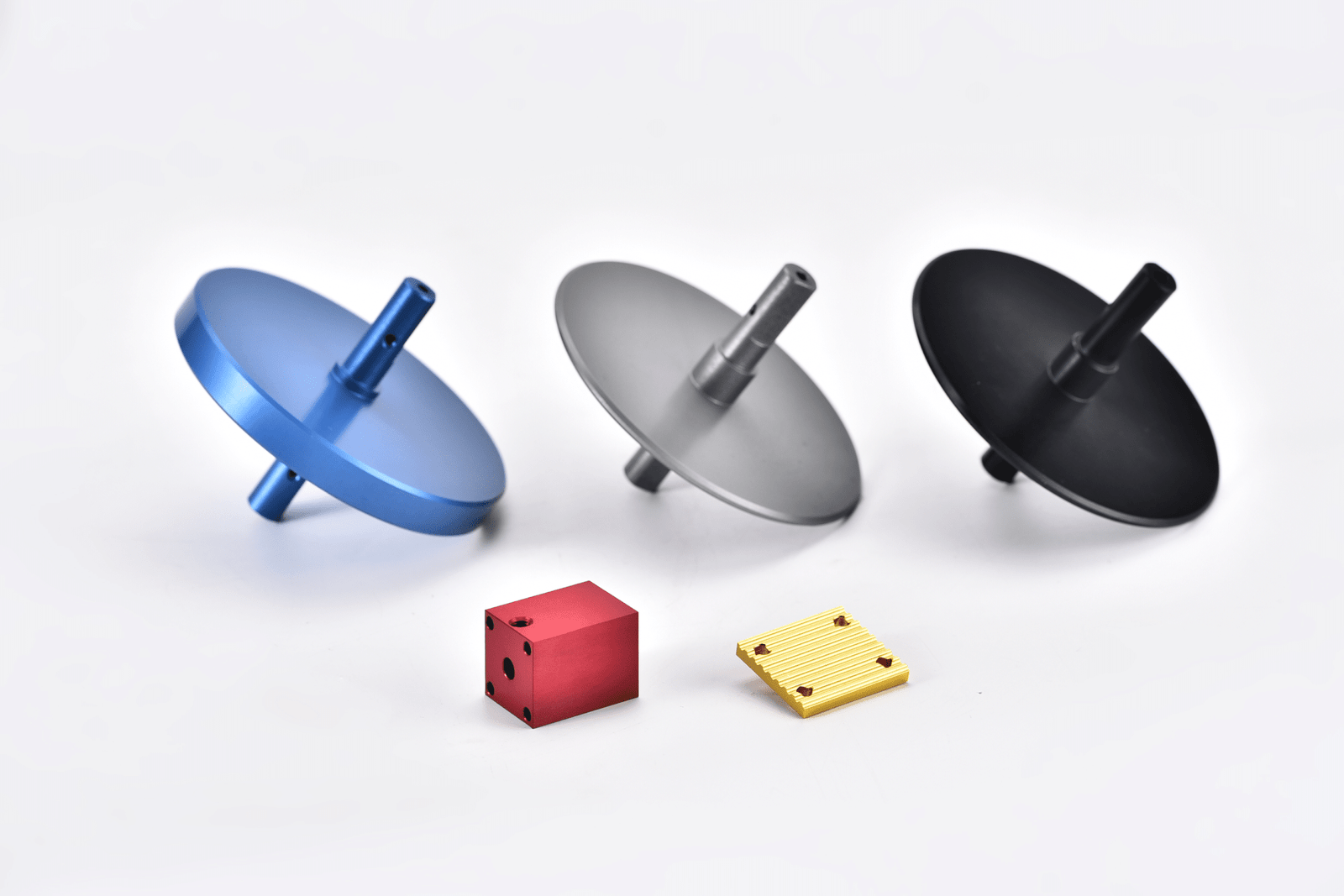

Anodizing

Anodizing is an electrochemical process that creates a protective layer of oxide on the surface of a metal prototype. This process enhances the metal’s durability, corrosion resistance, and appearance.

Plating

Plating is a process of depositing a thin layer of metal onto the surface of a prototype. This process can be used to enhance the appearance and corrosion resistance of the prototype.

Texturing

Texturing is adding a surface texture to the prototype, which can improve the grip, feel, and appearance.

Laser etching

Laser etching is a process of using a laser to create a design or pattern on the surface of a prototype. This process can add branding, logos, or other decorative elements to the prototype.

Heat treatment

Heat treatment is a process of heating and cooling metal prototypes to alter their properties, such as hardness, strength, and flexibility. This process can be used to improve the mechanical properties of the prototypes.

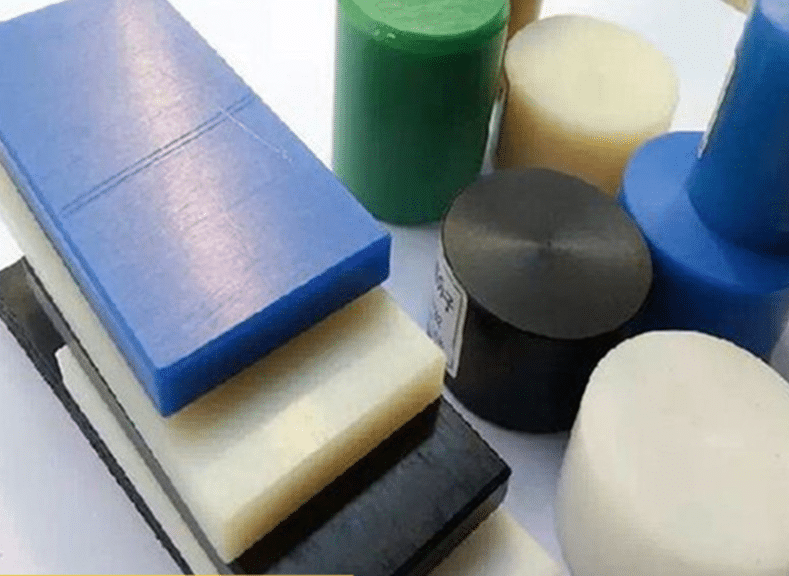

What Materials Are Used for Prototyping?

Depending on the project’s specific requirements, a wide range of materials can be used for prototyping. Here are some commonly used materials for prototyping:

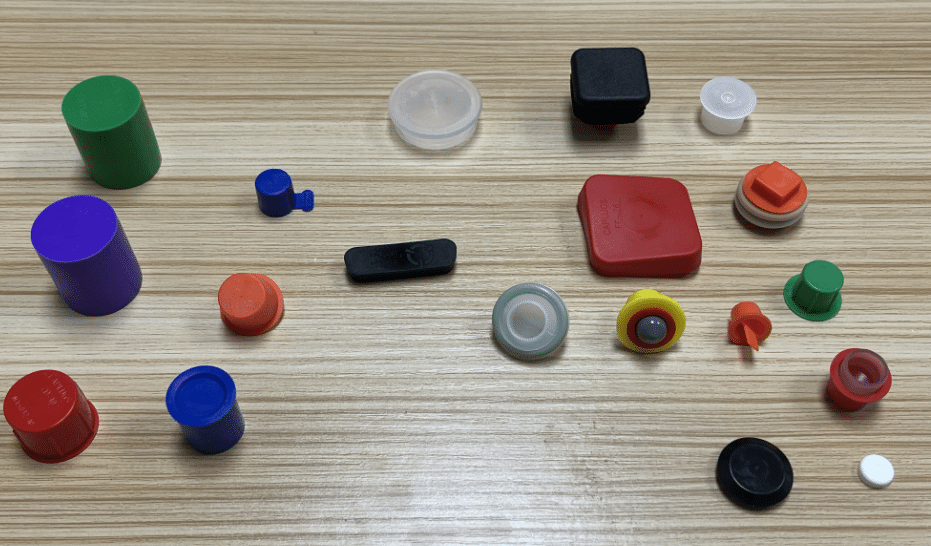

1. Thermoplastics:

ABS (Acrylonitrile Butadiene Styrene)

PLA (Polylactic Acid)

Nylon

Polycarbonate

Polypropylene

POM (Polyoxymethylene)

2. Resins

Photopolymer resins (used in SLA printing)

Polyurethane (PU) resins

Epoxy resins

3. Metals:

Aluminum

Stainless steel

Brass

Copper

Titanium

Tool steel

4. Composites

Carbon fiber composites

Glass fiber composites

5. Foam:

Polyurethane foam

Polystyrene foam

6. Wood:

Plywood

MDF (Medium-Density Fiberboard)

Hardwood

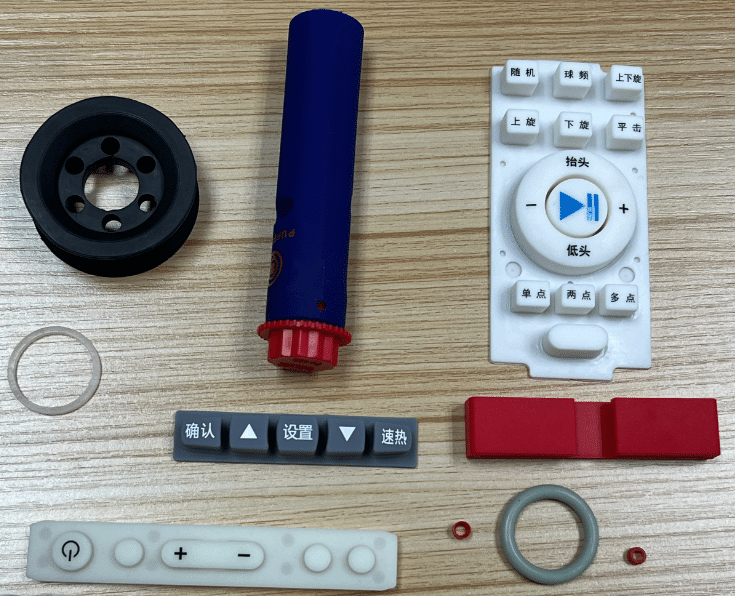

7. Silicone and Rubber:

Silicone elastomers

Rubber-like materials

8. Wax

Used in investment casting processes

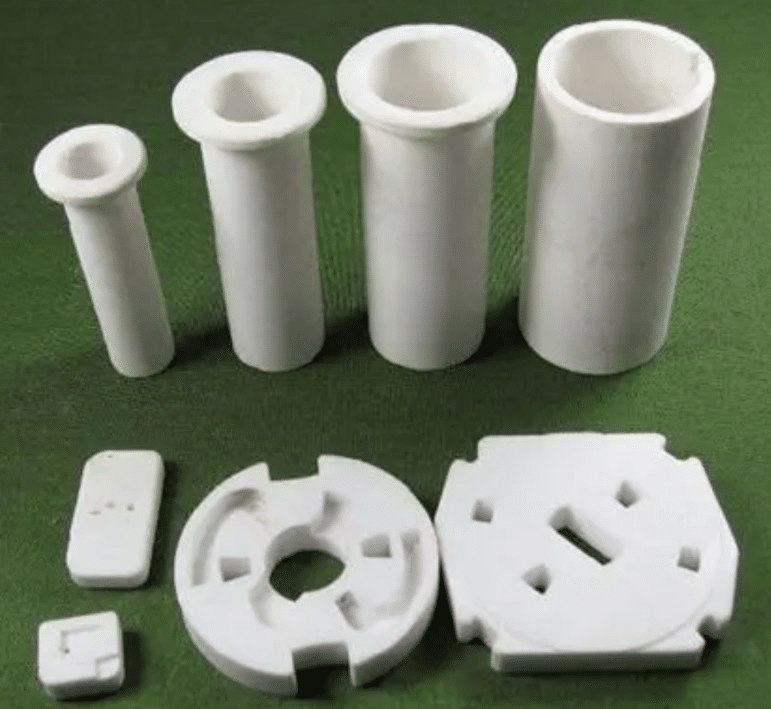

9. Ceramic and Glass

Ceramic materials

Glass-filled resins

10. Paper and Cardboard

Used in low-fidelity prototyping and modeling

These materials offer various properties such as strength, flexibility, heat resistance, transparency, and machinability. The selection of materials depends on factors such as the intended purpose of the prototype, functional requirements, desired aesthetics, production methods (such as 3D printing or CNC machining), and budget constraints

Conclusion

Rapid prototyping has revolutionized product development by speeding up the process and improving success rates. Processes like 3D printing, CNC machining, and laser cutting are commonly used. Material characteristics, product design, and support structures must be considered for rapid prototyping. Rapid injection molding is a valuable option when a part requires additive manufacturing through an injection mold, offering faster production and lower costs.
